Артикул: 130324

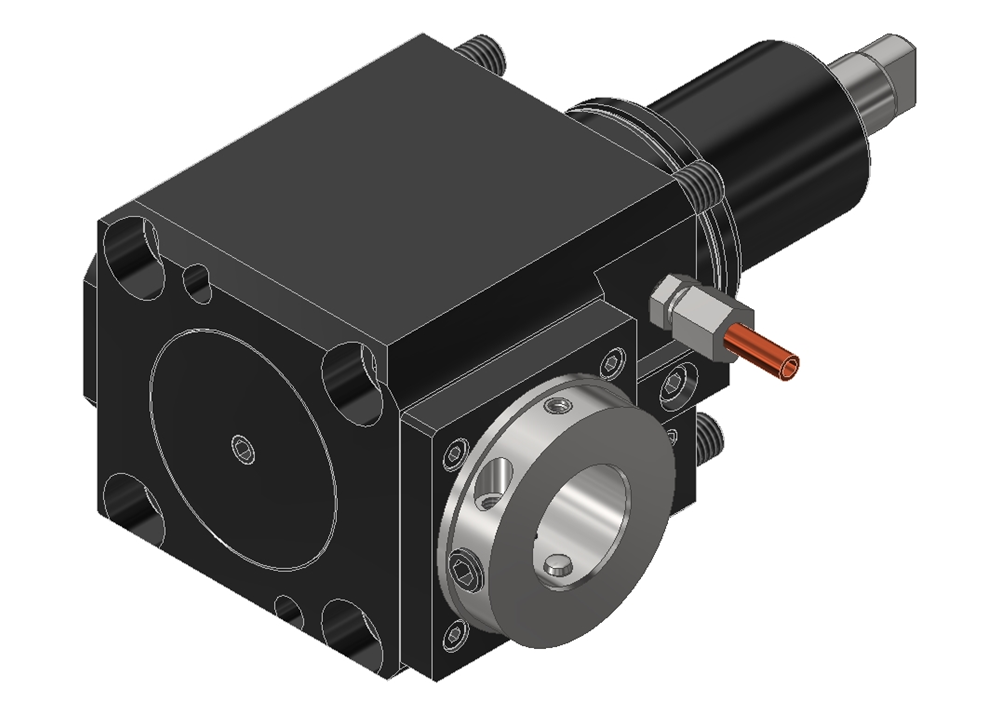

Radial drilling and milling head i = 1:1 EWS Varia V3 Transmission: 1:1 Torque: 25 / 25 Spindlespeed: 6000 / 6000 Weight: 5.589
| Functional length (LF) | 60.00 mm |
|---|---|
| Total height (OAH) | 85.00 mm |
| Number of holders, workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 25.00 Nm |
| Max. rotational speed, input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque, output drive 1 (DINH201) | 25.00 Nm |
| Shank size | BMT55 |
| Interface size | EWS Varia V3 |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
| Alignment system | BMT — keyway |
