60.4406WNNTY3IKI1 — Radial drilling and milling head, Whistle Notch/Weldon Ø6, Similar to DIN 1809 drive, Int. / ext. coolant pmax = 70bar, i =1:2 direction of rotation inver.,

Артикул: 144764

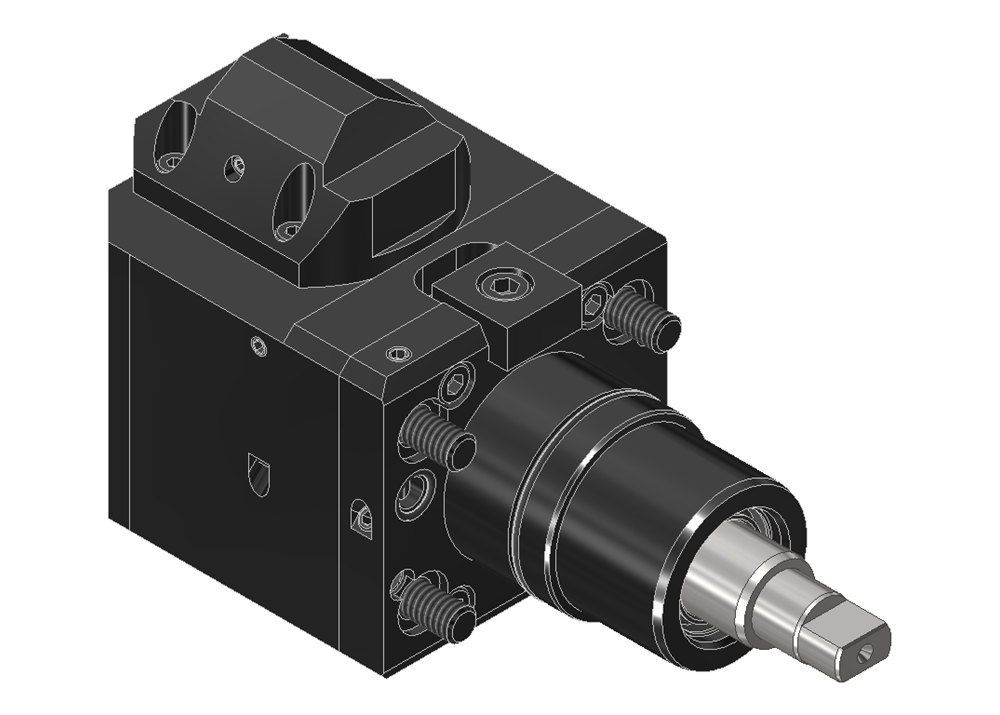

Radial drilling and milling head

Premium class tool system for highest production efficiency — Made in Germany

Internal cooling
Equipped with high-quality seal kits that can withstand coolant pressure of up to 70 bar.

  • 70 bar maximum coolant pressure
  • Not capable of dry running
  • Change between external and internal cooling possible
  • Coolant must be applied to the tool at all times

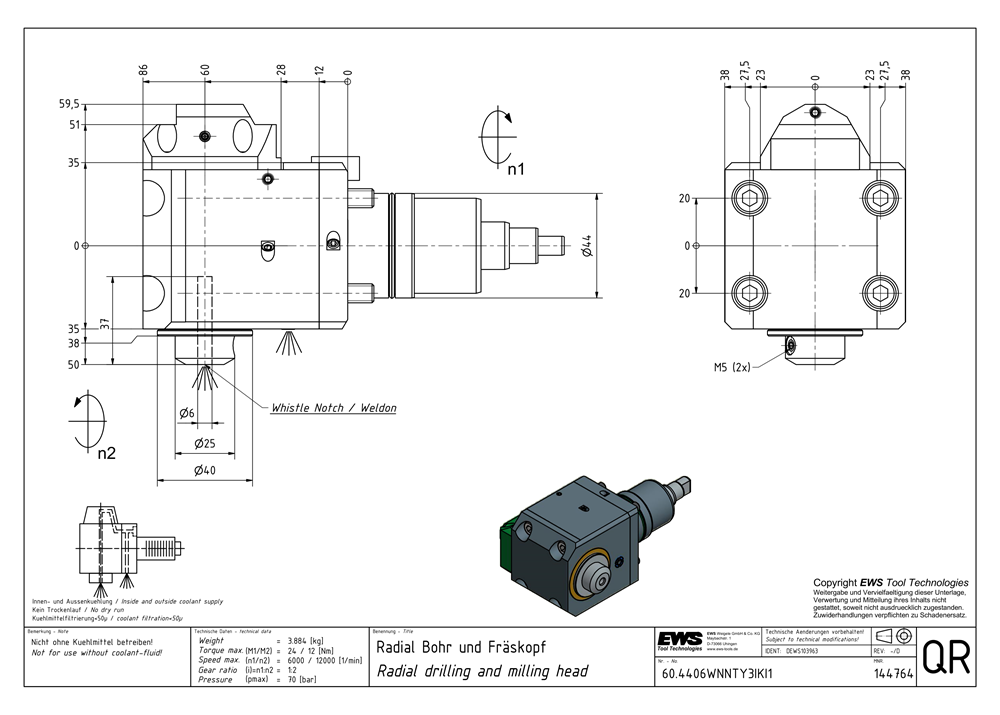

Документация

Functional length (LF) 60.00 mm
Total height (OAH) 76.00 mm
Number of holders, workpiece side (CCONWS) 1
Max. torque (TQX) 24.00 Nm
Max. rotational speed, input (RPMX) 6000 min-1
Transmission relation (TR) 1:2
Transmission torque, output drive 1 (DINH201) 12.00 Nm
Shank size BMT44
Interface size Weldon Ø 6.0
Whistle Notch Ø 6.0
Coolant intake Inner and outer cooling
Coupling Surface coupling
Alignment system BMT — keyway

Article number144764
Product weight3.884 KG
