Артикул: 145509

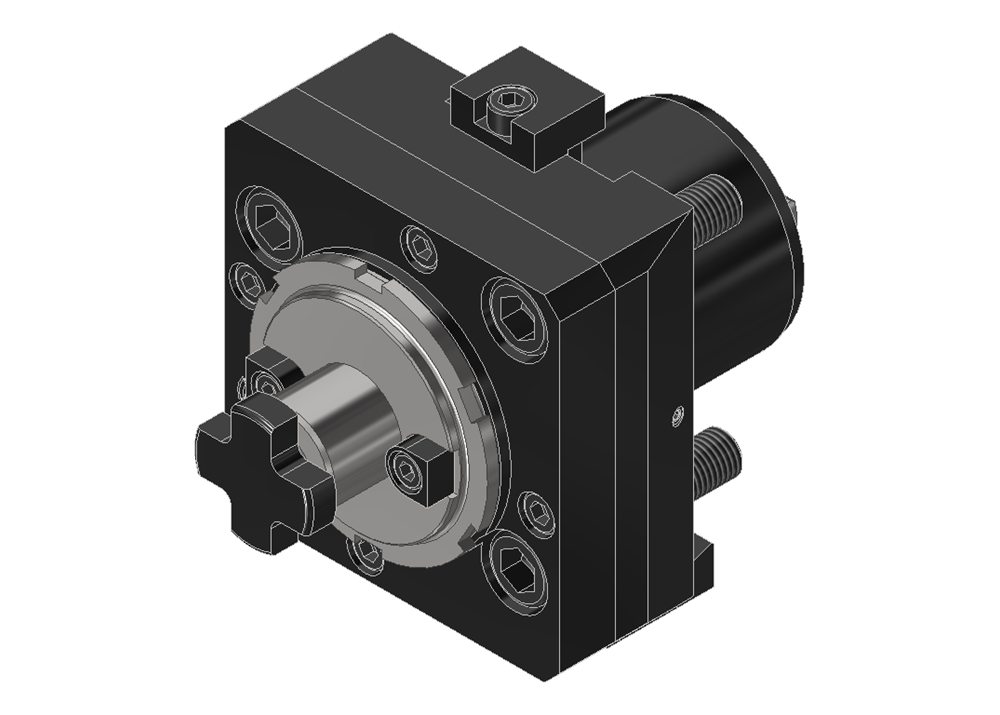

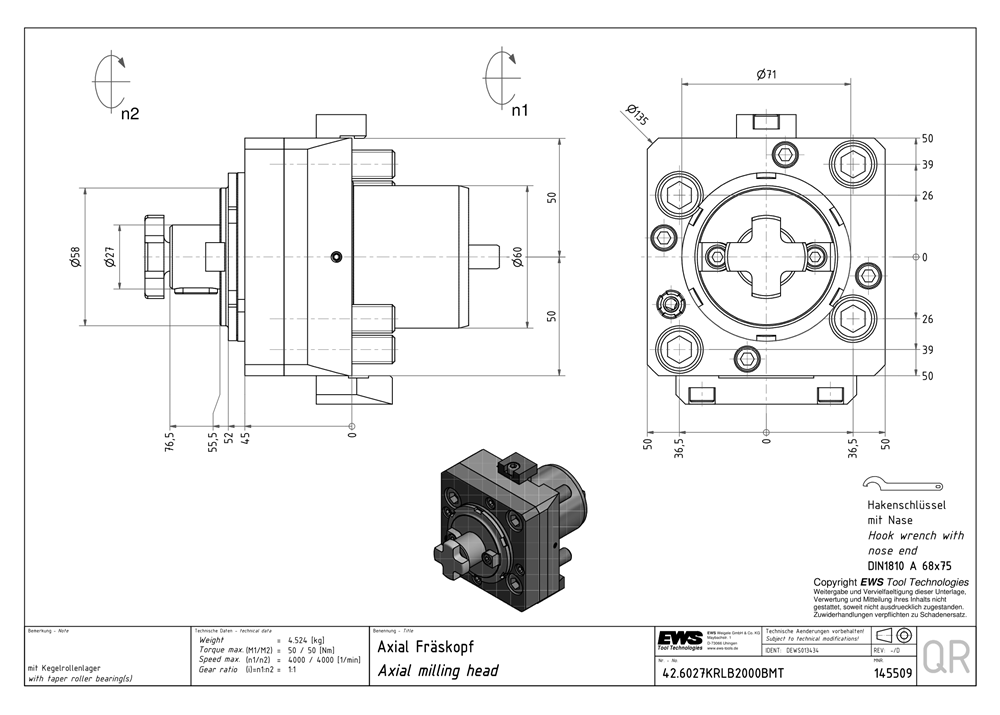

Axial milling head i=1:1 Milling arbor dia. 27 Transmission: 1:1 Torque: 50 / 50 Spindlespeed: 4000 / 4000 Weight: 4.524
| Total height (OAH) | 100.00 mm |
|---|---|
| Number of holders, workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed, input (RPMX) | 4000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque, output drive 1 (DINH201) | 50.00 Nm |
| Shank size | BMT60B Okuma |
| Interface size | Cutting arbour Ø27 DIN138 (longitudinal and cross groove) |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
