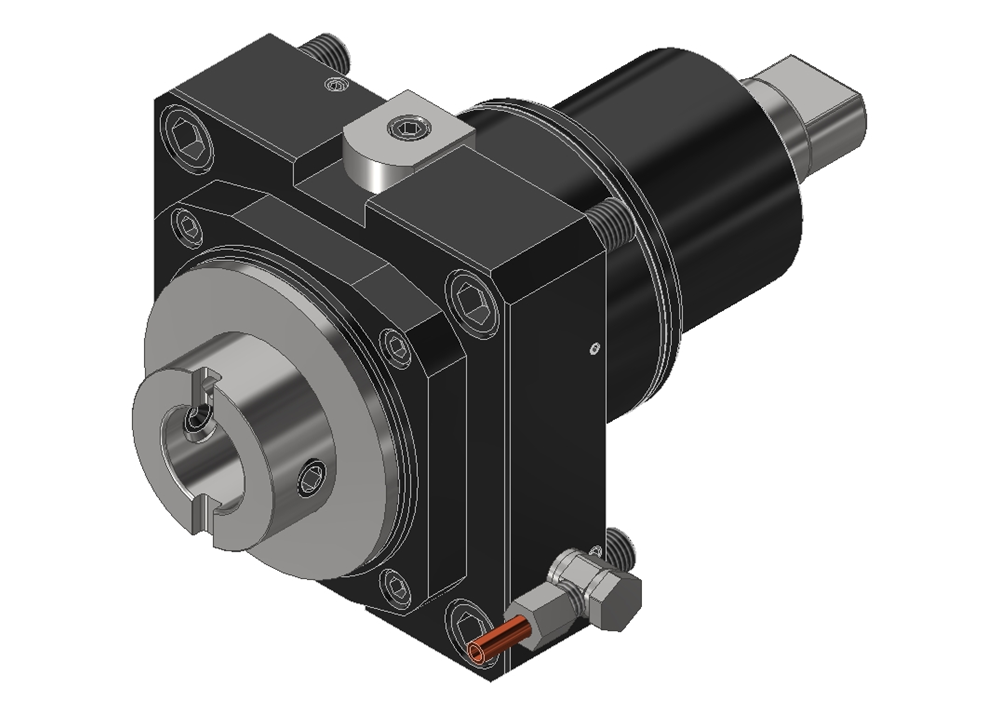

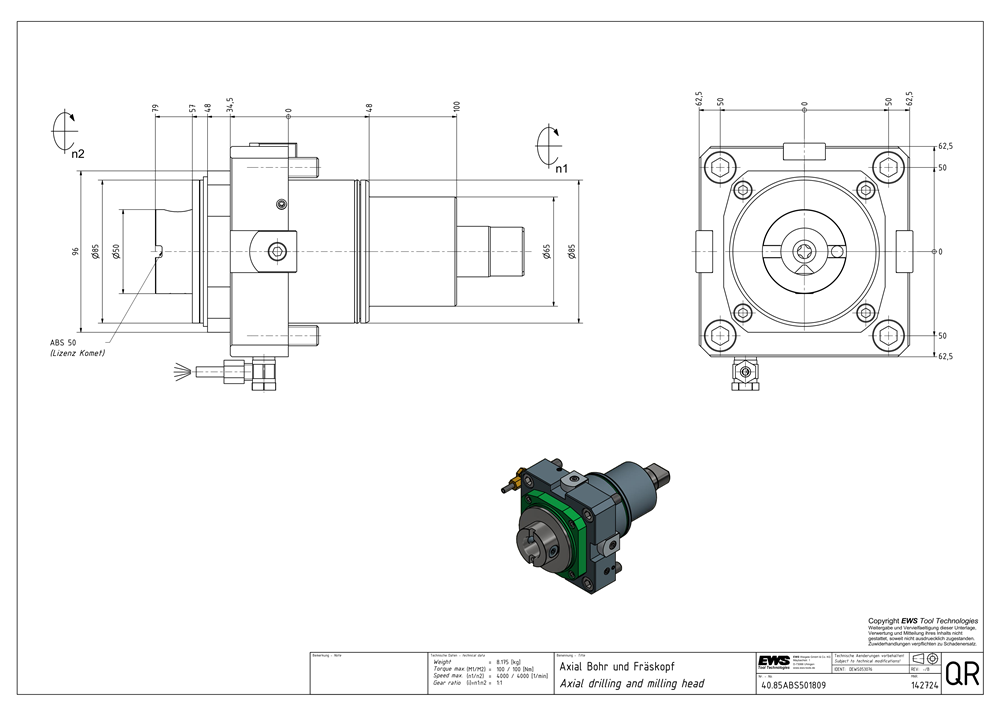

40.85ABS501809 — Axial drilling and milling head, ABS50 (Lizenz Komet ), External coolant supply, i = 1:1 (input equal output),

Артикул: 142724

Axial drilling and milling head

Premium class tool system for highest production efficiency — Made in Germany


Документация

Total height (OAH) 125.00 mm
Number of holders, workpiece side (CCONWS) 1
Max. torque (TQX) 100.00 Nm
Max. rotational speed, input (RPMX) 4000 min-1
Transmission relation (TR) 1:1
Transmission torque, output drive 1 (DINH201) 100.00 Nm
Shank size BMT85
Interface size ABS 50
Coolant intake Outer cooling
Coupling Surface coupling

Article number142724
Product weight8.175 KG
