Артикул: 159813

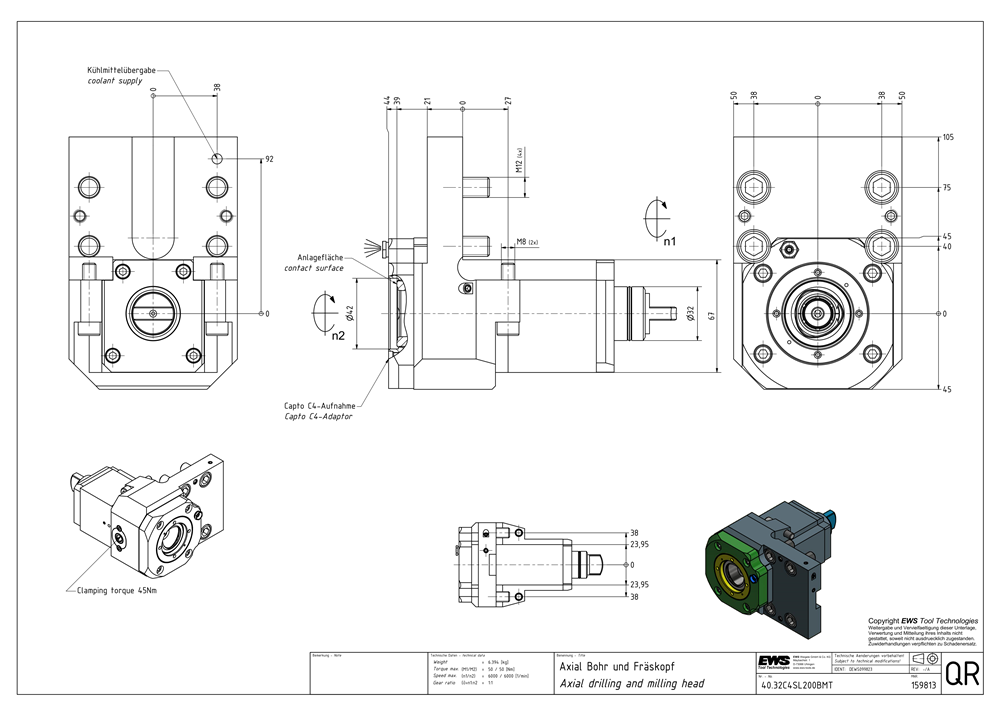

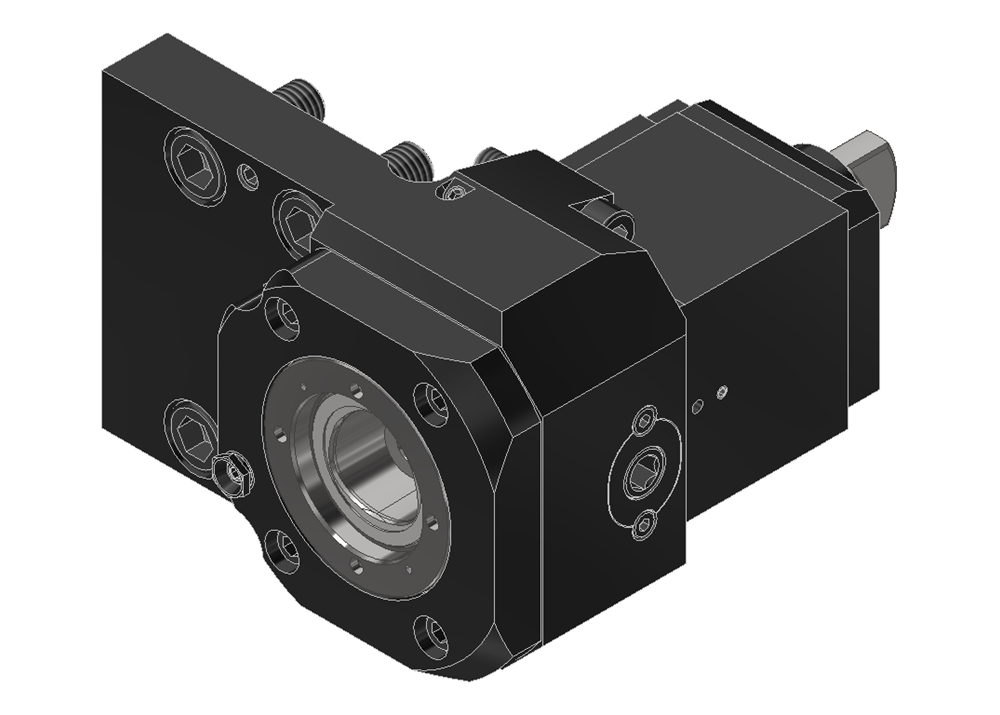

Axial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
EWS.PSC — standardized interface
- Size PSC 40:
- Repeatability ≤ 0.01mm
- Tightening torque 50 Nm
- Clamping force 21 kN
- Standardized adapters available worldwide
- High force transmission
- Easy handling
- Interface for driven and static tools
- Extra short adapters without gripper groove available — talk to us!
| Number of holders, workpiece side (CCONWS) | 1 |
|---|---|
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed, input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque, output drive 1 (DINH201) | 50.00 Nm |
| Shank size | BMT32E |
| Interface size | PSC 40 |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
| Alignment system | BMT — keyway |
