Артикул: 225476

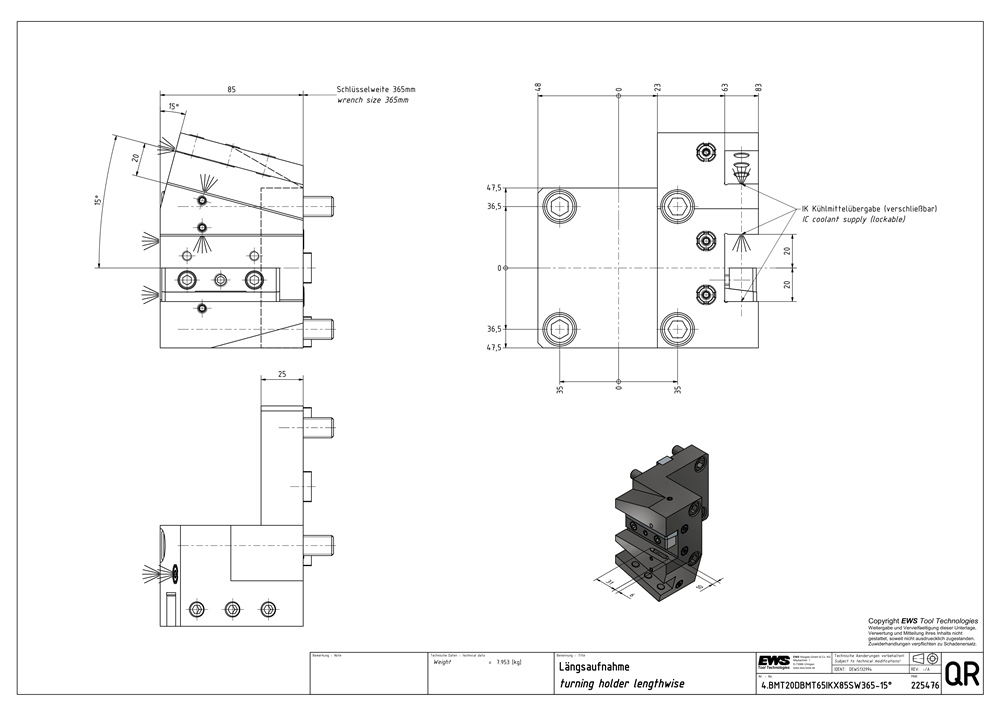

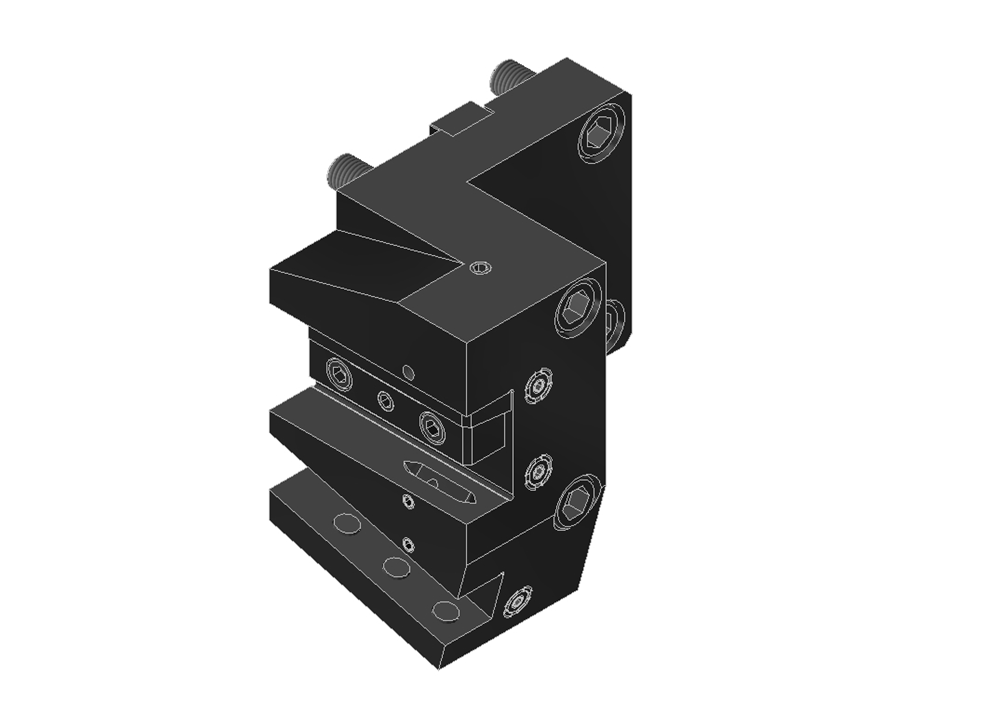

Square longitudinal holder, left, overhead, shape C2
Premium class tooling system for highest production efficiency — Made in Germany
Technical feature
- Tool holder can only be used on one side.
- A turning tool can be clamped.
- Pressure plate is convertible.
- The conversion allows the position of the cutting edge to be changed between overhead and standard.
| Cantilever length (LPR) | 85.00 mm |
|---|---|
| Functional length (LF) | 0.00 mm |
| Function height (HF) | 20.00 mm |
| Functional width (WF) | 63.00 mm |
| Direction tool interface (HAND) | L |
| Number of holders, workpiece side (CCONWS) | 2 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | BMT65 |
| Interface size | Shank 20×20 |
| Convertible | yes — pressure plate |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 0° |
| Alignment system | BMT — keyway |
