Артикул: S04856

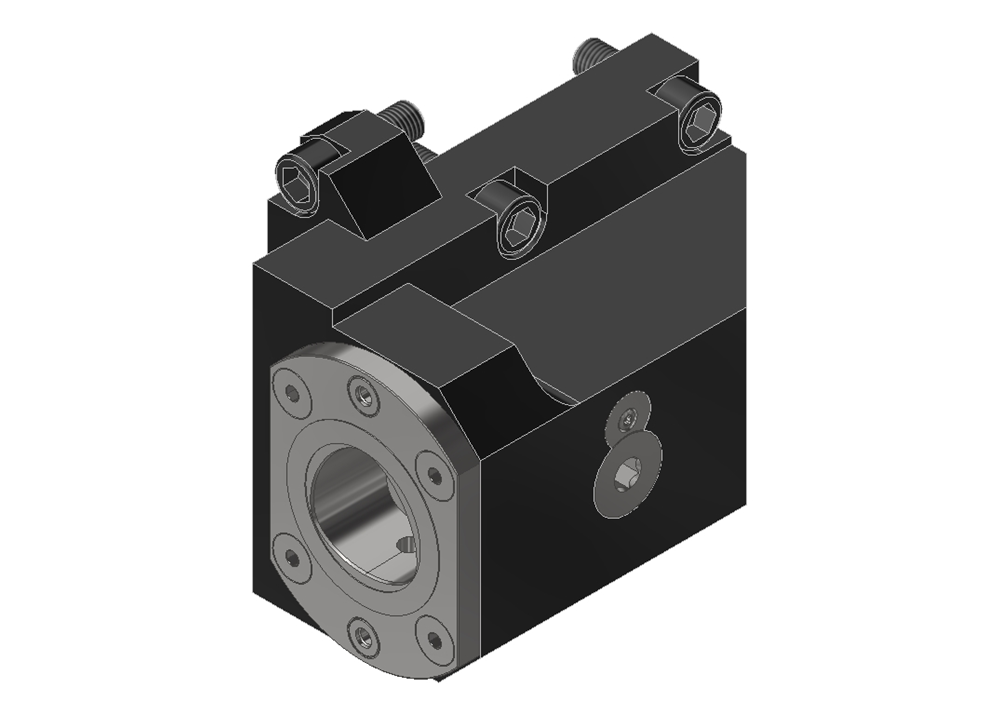

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 120.00 mm |
|---|---|
| Functional length (LF) | 70.00 mm |
| Functional width (WF) | 92.00 mm |
| Product group | Tool holders and adapter |
| Product type | PSC tool holder |
| Shank size | BMT95x124 DMG Mori |
| Interface size | PSC 80 |
| Convertible | yes — flange |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
| Alignment system | BMT — keyway |
