Артикул: S05404

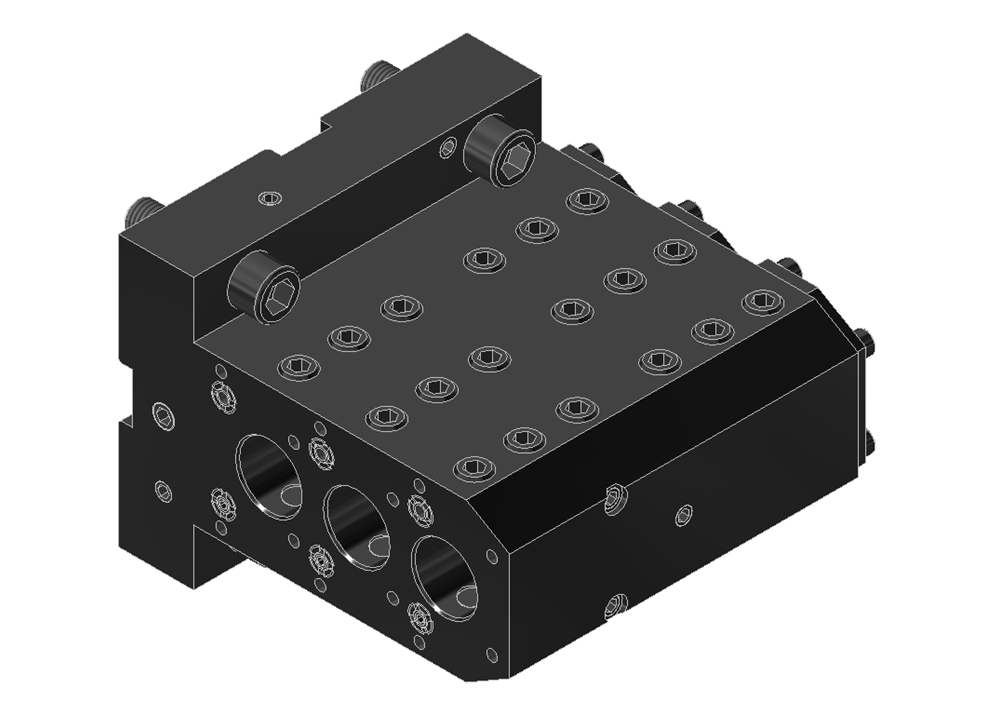

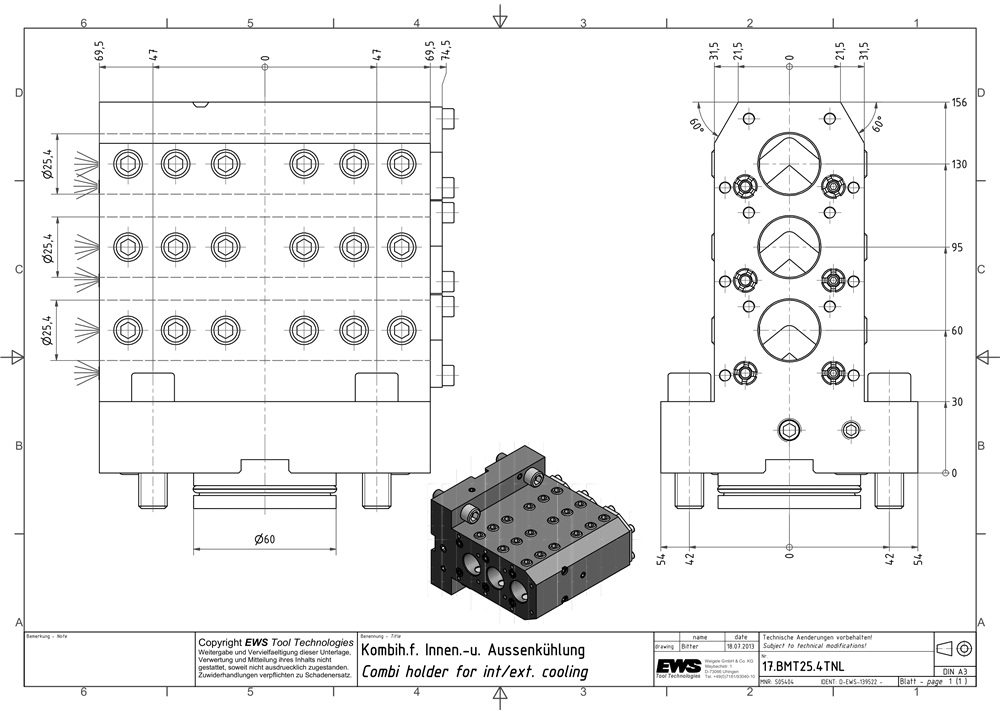

Combination holder for internal and external cooling
Premium class mold system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 156.00 mm |
|---|---|
| Functional length (LF) | 60.00 mm |
| Functional width (WF) | 69.50 mm |
| Mounting diameter, min. (DCONN) | 25.40 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | BMT60 DMG Mori |
| Interface size | Boring bar Ø 1″ |
| Convertible | yes — cover |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 90° |
| Alignment system | BMT — keyway |
