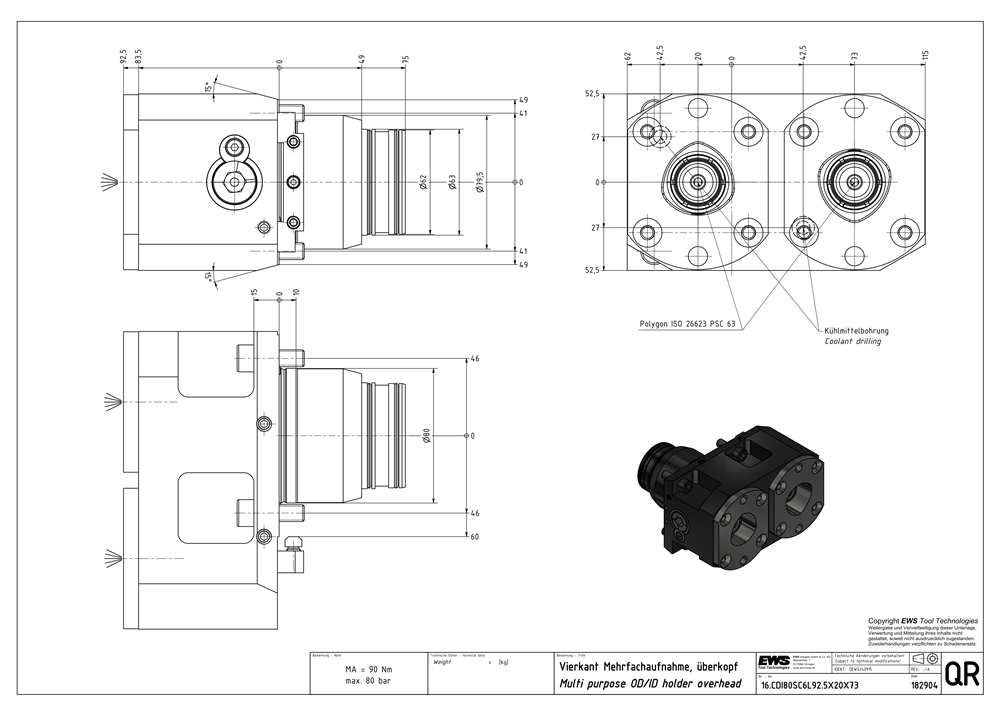

16.CDI80SC6L92.5X20X73 — Multi purpose holder, Polygon ISO 26623 | PSC 63, both-sides useable, length 92.5 mm,

Артикул: 182904

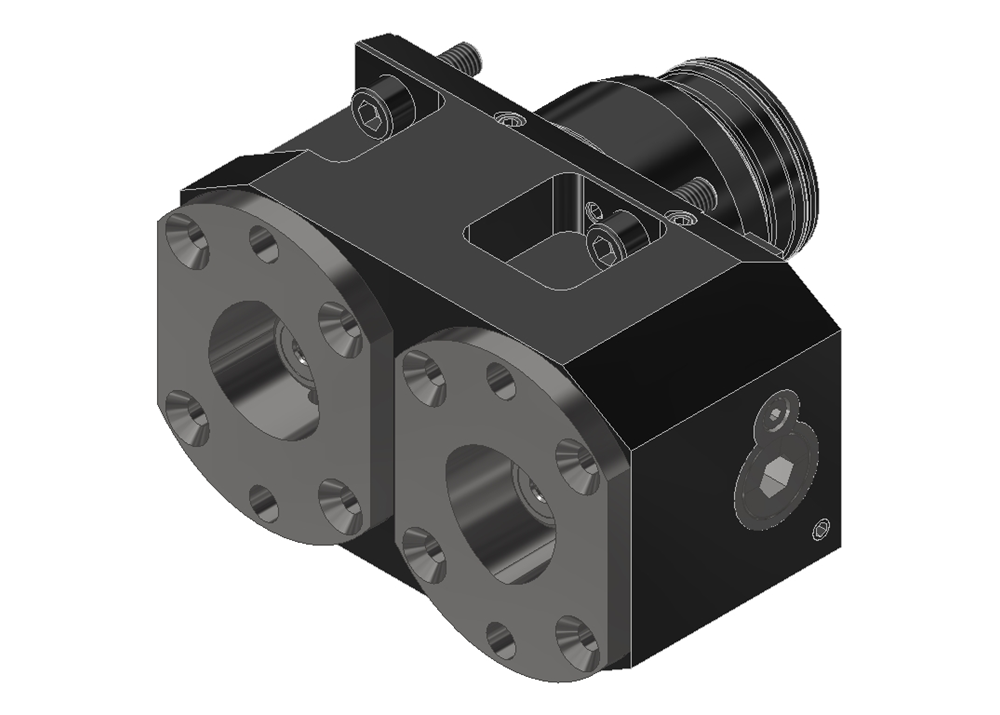

Square multiple holder, overhead, shape D1

Premium class tooling system for highest production efficiency — Made in Germany

EWS.PSC — standardized interface

  • Size PSC 63:
    • Repeatability ≤ 0.01mm
    • Tightening torque 90 Nm
    • Clamping force 30 kN
  • Standardized adapters available worldwide
  • High force transmission
  • Easy handling
  • Interface for driven and static tools
  • Extra short adapters without gripper groove available — talk to us!


Документация

Product group Tool holders and adapter
Product type PSC tool holder
Shank size CDI 80
Interface size PSC 63
Convertible yes — flange
Rotatable main &amp’ counter spindle yes
Tool orientation

Article number182904
