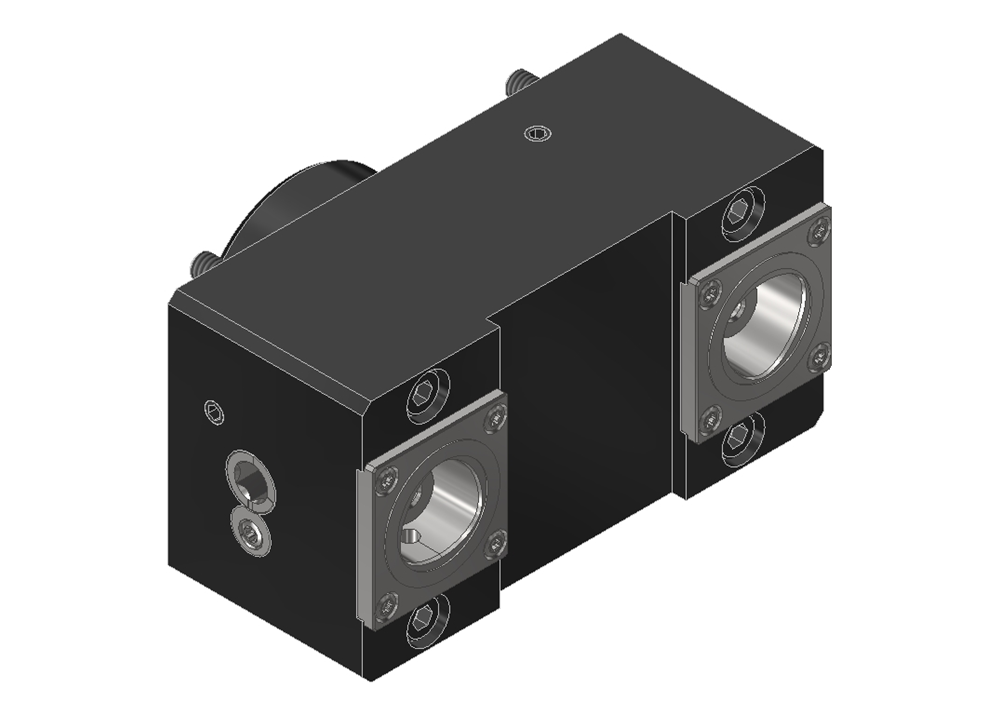

15.BMTC4QSM200 — Multi purpose holder, Polygon ISO 26623 | PSC 40, for right + left rotating direction, single side useable,

Артикул: 202266

Square multiple holder, form D1

Premium class tooling system for highest production efficiency — Made in Germany

EWS.PSC — standardized interface

  • Size PSC 40:
    • Repeatability ≤ 0.01mm
    • Tightening torque 50 Nm
    • Clamping force 21 kN
  • Standardized adapters available worldwide
  • High force transmission
  • Easy handling
  • Interface for driven and static tools
  • Extra short adapters without gripper groove available — talk to us!


Документация

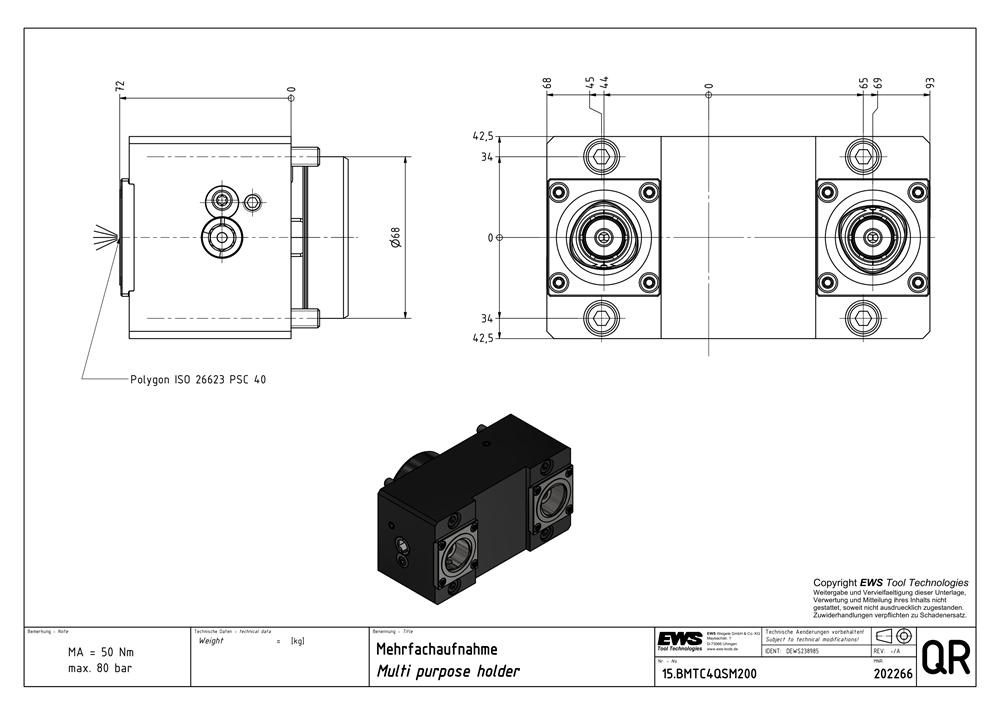

Cantilever length (LPR) 72.00 mm
Functional length (LF) 72.00 mm
Functional width (WF) 113.00 mm
Product group Tool holders and adapter
Product type PSC tool holder
Shank size BMT68 Mazak
Interface size PSC 40
Convertible yes — flange
Rotatable main &amp’ counter spindle No
Tool orientation
Alignment system BMT — keyway

Article number202266
Product weight7.659 KG
