Артикул: S04654

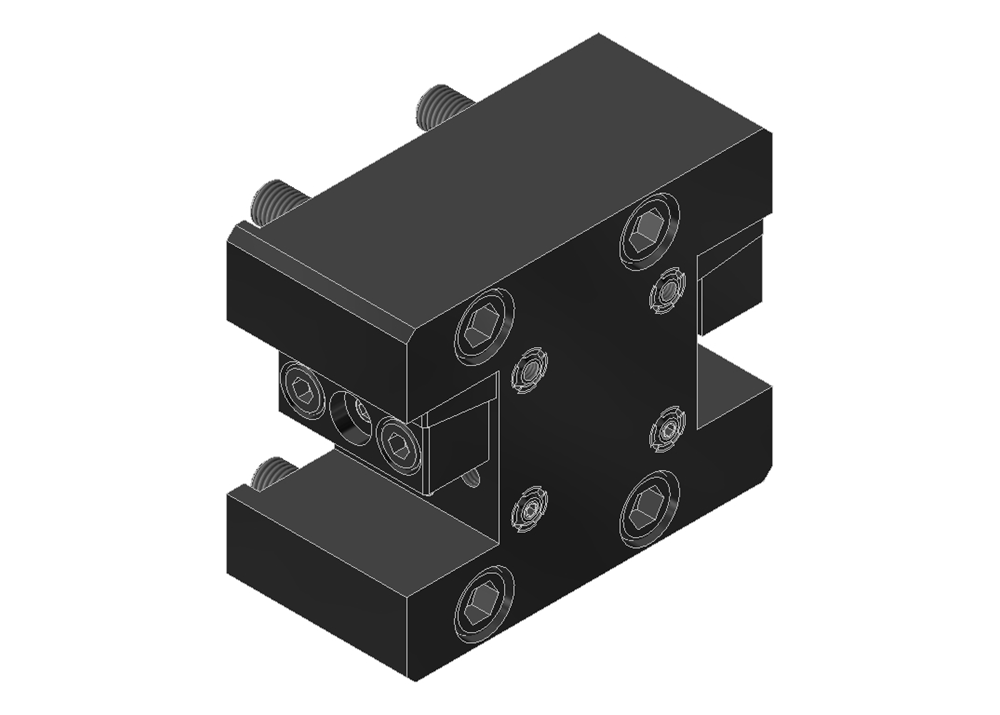

Square multiple holder, form D1
Premium class tooling system for highest production efficiency — Made in Germany
Technical feature
- Two tools can be clamped at the same time.
- Tool holder can be used for main spindle and counter spindle.
- Pressure plates are convertible.
- By the conversion, the position of the cutting edge can be changed between overhead and standard.
| Cantilever length (LPR) | 55.00 mm |
|---|---|
| Functional length (LF) | 0.00 mm |
| Function height (HF) | 25.00 mm |
| Functional width (WF) | 25.00 mm |
| Direction tool interface (HAND) | N |
| Number of holders, workpiece side (CCONWS) | 2 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | BMT55x80 DN Solutions |
| Interface size | Shank 25×25 |
| Convertible | yes — pressure plate |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
| Alignment system | BMT — keyway |
