SFSE.G1/8-28.22.HB.12.IR/IL.IK TI500

MonoThread – Thread milling cutter with chamfer facet
Артикул: 5481701800

Article description

Designation:
SFSE.G1/8-28.22.HB.12.IR/IL.IK TI500
SOLID CARBIDE THREAD MILL WITH CHAMFER

Description:

Profile-corrected
Hard machining from Ø DC = 4 mm possible
Chamfer section at end of shank

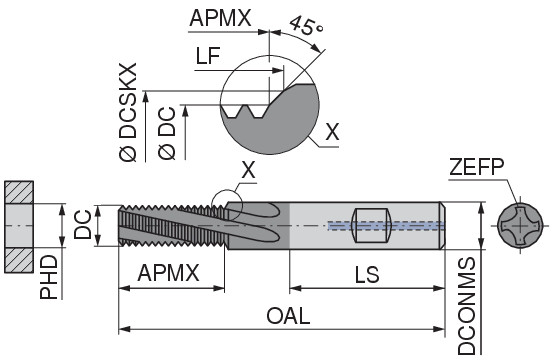

Technical data
ThreadG 1/8-28
Thread pitch / TP0,907 mm
Cutting diameter / DC7,95 mm
Threads per inch / TPI28 1/»
Depth of cut maximum / APMX22 mm
Shank length / LS45 mm
Overall length / OAL80 mm
Mounting spigot diameter​ / DCONMS h612 mm
Countersunk diameter, max / DCSKX10,03 mm
Functional length / LF23 mm
Peripheral effective cutting edge count / ZEFP3
Premachined hole diameter / PHD8,8 mm
coating name / COATNTi500
