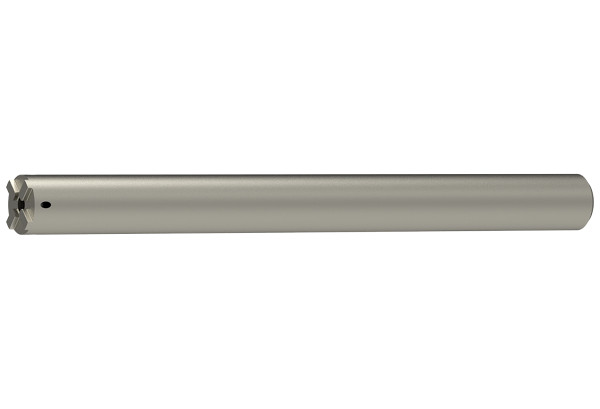

MINIMILL.XL.50.HA.HM.16.60.IK

ModuSet – Circular milling cutter
Артикул: 5301606000

Article description

Designation:
MINIMILL.XL.50.HA.HM.16.60.IK
CARBIDE CIRCULAR END MILL CUTTER

Description:

Steel and carbide versions
Specialised cutting point with four driving slots exclusively for cutting operations in the larger diameter range

Scope of supply:

including key

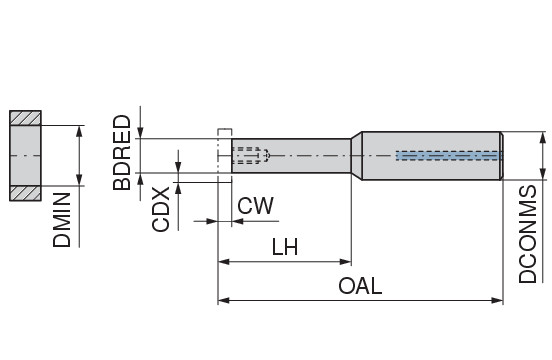

Technical data
Size50
Head length / LH60 mm
Mounting spigot diameter​ / DCONMS h616 mm
Overall length / OAL125 mm
Bore Ø, min., Range / DMIN50 mm
Cutting depth maximum​​ range / CDX16,5 mm
Cutting width​​ range / CW≤6 mm
Neck diameter (BD) / BD16 mm
torque moment7 Nm
