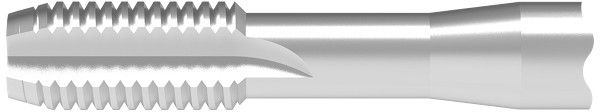

DuoTap GG.HML.M6.ISO2X-6HX.DIN371-C IK

Through hole-blind hole — machine taps, right-hand with carbide strips
Артикул: 2247106000

Article description

Designation:
DuoTap GG.HML.M6.ISO2X-6HX.DIN371-C IK
SOLID CARBIDE MACHINE TAP DSL

Description:

specially designed for vermicular cast iron (GJV) and grey cast iron (GJL)
flexible HSS shank and hard cutting edge in one tool

Technical data
Thread diameter range / TDM6 mm
Overall length / OAL80 mm
Mounting spigot diameter​ / DCONMS6 mm
Drive size / DRVS4,9 mm
Premachined hole diameter / PHD5 mm
Thread cutting part length / THL18 mm
Usable length / LU30 mm
Thread pitch / TP1 mm
Thread form type / THFTM
Thread tolerance class / TCTRISO 2X 6HX
