WPS.23,00.HB.90°.-09

Indexable chamfer milling 90°
Артикул: 3019623000

Article description

Designation:
WPS.23,00.HB.90°.-09

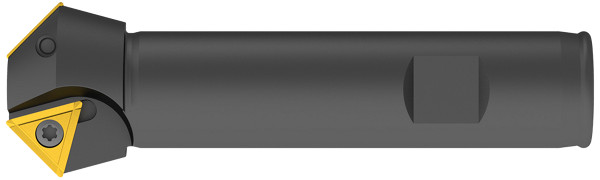

COUNTERSINK WITH INSERTS

Scope of supply:

Indexable insert countersink including clamping screws

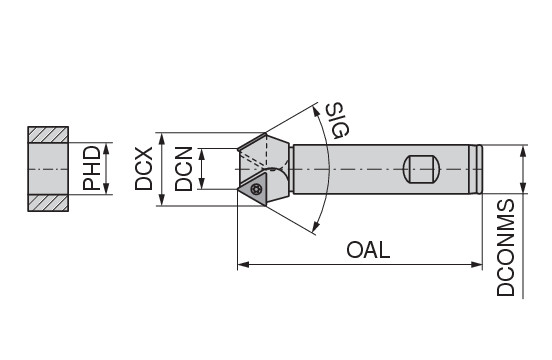

Technical data
for screwsM12
Cutting diameter maximum / DCX23 mm
Cutting diameter minimum / DCN11 mm
Premachined hole diameter / PHD12 mm
Mounting spigot diameter​ / DCONMS16 mm
Overall length / OAL100 mm
Peripheral effective cutting edge count / ZEFP2
Face mounted insert count / ZNF2
torque moment1,28 Nm
InsertTOHX 090204
SIG / SIG90 °
