WPS.11,00.HB.180°.WO.X-03

Insert countersink 180°
Артикул: 3019801100

Article description

Designation:
WPS.11,00.HB.180°.WO.X-03

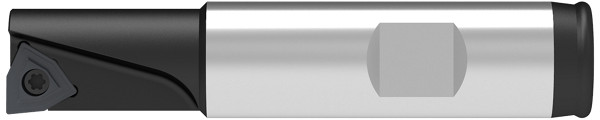

COUNTERSINK WITH INSERTS

Scope of supply:

Indexable insert countersink including clamping screws

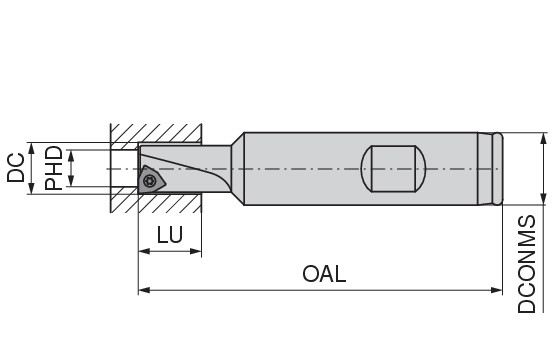

Technical data
Cutting diameter / DC11 mm
Premachined hole diameter / PHD6,4 mm
Mounting spigot diameter​ / DCONMS16 mm
Overall length / OAL80 mm
Peripheral effective cutting edge count / ZEFP1
Face mounted insert count / ZNF1
torque moment0,62 Nm
InsertWOEX 030204
Usable length / LU11 mm
SIG / SIG180 °
