ST.MONO.MAS-BT-AD40.3-88,1.DIGI.IK

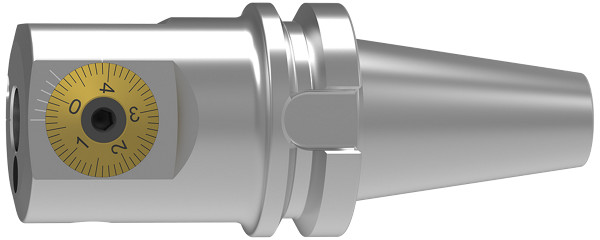

SpinTools – Single point boring head – Monoblock digital
Артикул: 62363488

Article description

Designation:
ST.MONO.MAS-BT-AD40.3-88,1.DIGI.IK
SINGLE POINT BORING HEAD DIGI

Description:

LSCX = Recess depth of boring bar
With thro’ coolant supply
Digital variant: please order the digital stick separately

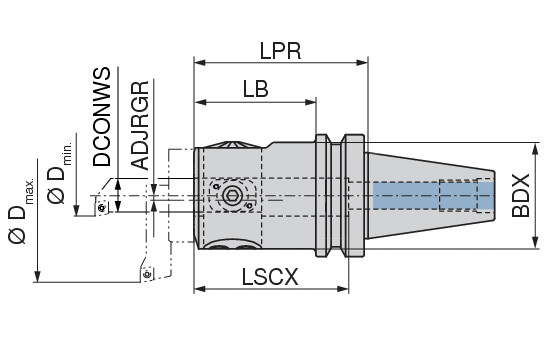

Technical data
Dmin — Dmax3,0 — 88,1 mm
Weight of item / WT1,9 kg
Machine interface sizeBT 40
Clamping diameter (DCONWS) / DCONWS16 mm
Body diameter maximum / BDX55 mm
Protruding length / LPR90 mm
Body length / LB59 mm
Clamping length maximum machine side / LSCX80 mm
Adjustment range radial — range / ADJRGR0 — 2,7 mm
Overall length / OAL155,4 mm
