ST.MOD.86,0-402,0.STM36.120.IK

SpinTools – Single point finish boring heads
Артикул: 62305302

Article description

Designation:
ST.MOD.86,0-402,0.STM36.120.IK
SINGLE POINT FINE BORING HEAD

Description:

With internal coolant supply
extremely stable connection between insert holder and boring head

Scope of supply:

Boring head, without insert holder, pressure plate and support

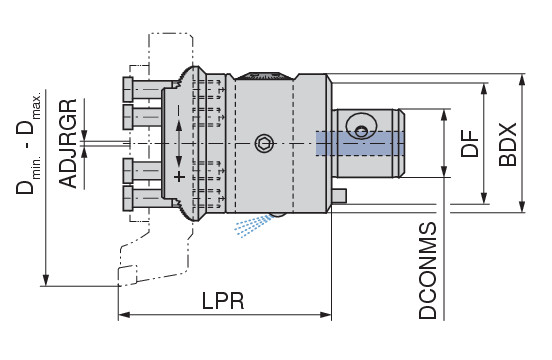

Technical data
Dmin — Dmax86 — 402 mm
Machine interface sizeSTM 36
Mounting spigot diameter​ / DCONMS36 mm
Body diameter maximum / BDX80 mm
Flange diameter / DF63 mm
Protruding length / LPR120 mm
Adjustment range radial — range / ADJRGR± 1,25 mm
Shank length / LS40 mm
Neck diameter (BD) / BD72 mm
