ST.BS.47,75-88,1.16.101.44.IK

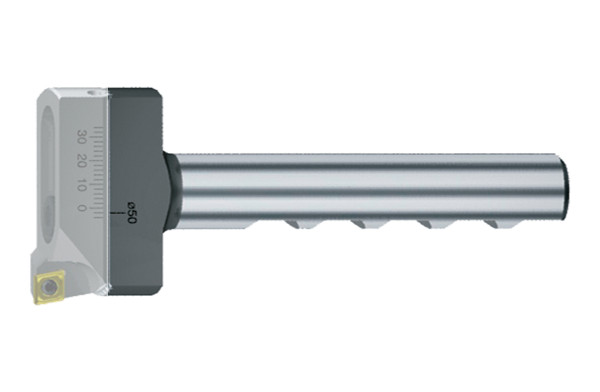

SpinTools – Adjustable boring bar bridge
Артикул: 62375088

Article description

Designation:
ST.BS.47,75-88,1.16.101.44.IK
ADJUSTABLE BORING BAR

Description:

with thro’ coolant

Scope of supply:

without insert holder

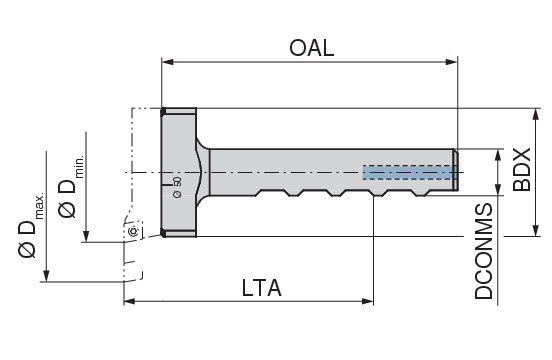

Technical data
Dmin — Dmax47,75 — 88,1 mm
Overall length / OAL101 mm
Mounting spigot diameter​ / DCONMS16 mm
length tool assembly / LTA85 mm
Cutting diameter minimum / DCN47,75 mm
Body diameter maximum / BDX44 mm
