PKD 125-22-101

KOMdrive – PKD-101
Артикул: 6000212522

Article description

Designation:
PKD 125-22-101

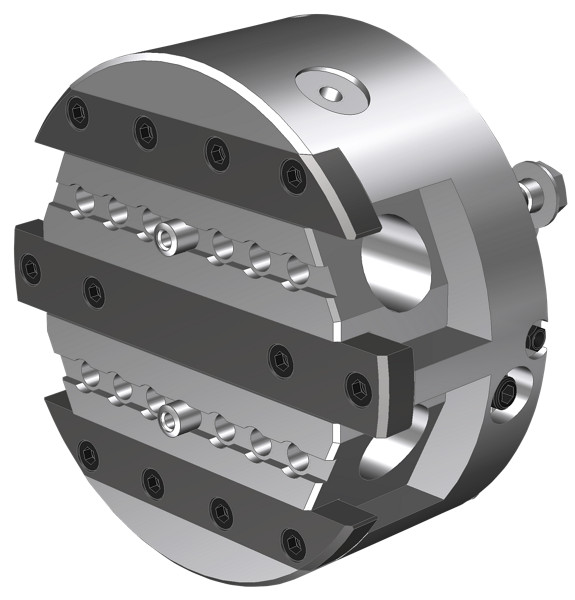

FACING HEAD

Description:

Surfacing head with double slide and hole pattern in slides type 101

Scope of supply:

Surfacing head incl. operating instructions and oil impact press
Intermediate flange and snap-on tool on request

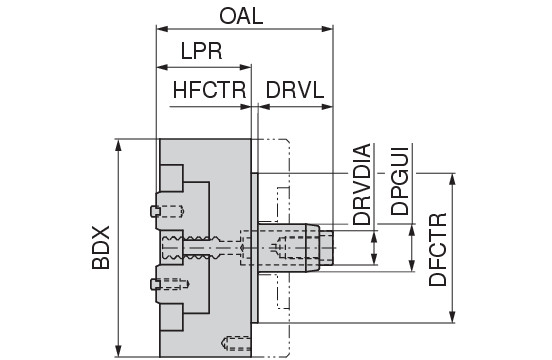

Technical data
Protruding length / LPR58 mm
Centering flange height / HFCTR4 mm
Drive length / DRVL43 mm
Drive diameter / DRVDIA20 mm
Guide pipe diameter / DPGUI30 mm
Centering flange diameter / DFCTR h690 mm
Body diameter maximum / BDX h6125 mm
Adjustment range radial / ADJRGR22 mm
Stroke / STRK26,2 mm
Slide width / SLDW26 mm
