MUC.NC-A90°.KLG12.16,00.R.TI1050

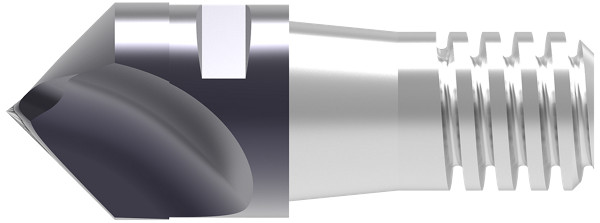

MultiChange – NC Spot Drill
Артикул: 10709160

Article description

The exchangeable head system for the highest demands and a wide range of applications

Designation:
MUC.NC-A90°.KLG12.16,00.R.TI1050
SOLID CARBIDE NC SPOT DRILL

Description:

SZID = Coupling Size
NOF = No. of cutting edges

Technical data
Product-Carbon-FootprintB
Cutting diameter / DC16 mm
nominal size / SZID12
Usable length / LU12 mm
Flange diameter / DF15,8 mm
Length chip flute / LCF20 mm
Overall length / OAL37,3 mm
Drive size / DRVS13 mm
Torque maximum / TQX20 Nm
Depth of cut maximum8 mm
torque moment20 Nm
Flute count / NOF2
coating name / COATNTi1050
