MUC.NC-A120°.KLG16.20,00.R.TI1050

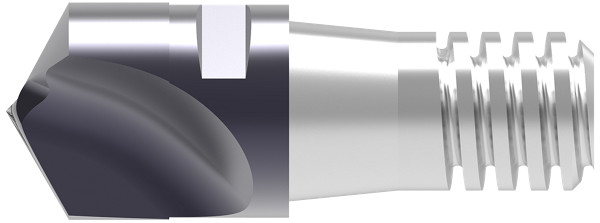

MultiChange – NC Spot Drill
Артикул: 10712200

Article description

The exchangeable head system for the highest demands and a wide range of applications

Designation:
MUC.NC-A120°.KLG16.20,00.R.TI1050
SOLID CARBIDE NC SPOT DRILL

Description:

SZID = Coupling Size
NOF = No. of cutting edges

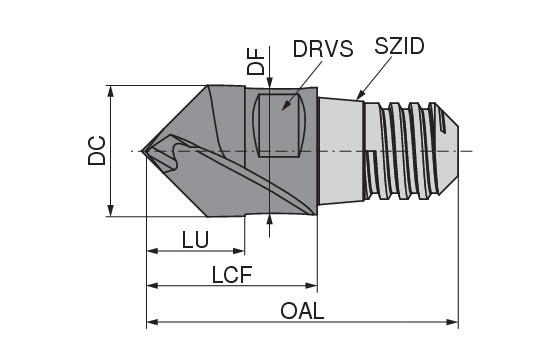

Technical data
Product-Carbon-FootprintB
Cutting diameter / DC20 mm
nominal size / SZID16
Usable length / LU15 mm
Flange diameter / DF19,8 mm
Length chip flute / LCF25 mm
Overall length / OAL47,2 mm
Drive size / DRVS16 mm
Torque maximum / TQX25 Nm
Depth of cut maximum10 mm
torque moment25 Nm
Flute count / NOF2
coating name / COATNTi1050
