KUB-T.92.570.R.10-C50

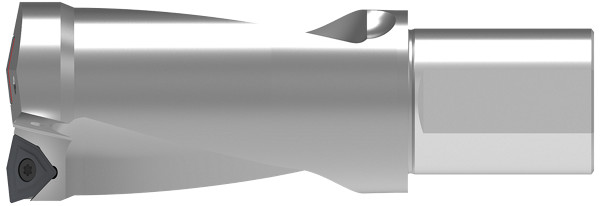

KUB Trigon – Indexable insert drill
Артикул: 1088857005

Article description

Designation:
KUB-T.92.570.R.10-C50
KUB TRIGON — INDEXABLE INSERT DRILL

Scope of supply:

Indexable Insert Drill incl. clamping screws

Technical data
Cutting diameter / DC57 mm
Mounting spigot diameter​ / DCONMS40 mm
Flange diameter / DF50 mm
Overall length / OAL215 mm
Protruding length / LPR147 mm
Usable length / LU92 mm
InsertWOEX 100504
torque moment4,3 Nm
