KUB-T.2D.200.R.04-K25

KUB Trigon – Indexable insert drill
Артикул: 1089220012

Article description

Designation:
KUB-T.2D.200.R.04-K25
KUB TRIGON — INDEXABLE INSERT DRILL

Scope of supply:

Indexable Insert Drill incl. clamping screws

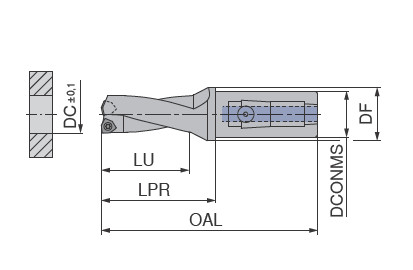

Technical data
Cutting diameter / DC20 mm
Mounting spigot diameter​ / DCONMS25 mm
Flange diameter / DF30 mm
Overall length / OAL120 mm
Protruding length / LPR64 mm
Usable length / LU40 mm
InsertWOEX 040304
torque moment1,01 Nm
Product-Carbon-FootprintB
