KUB-T.2D.150.L.03-ABS50

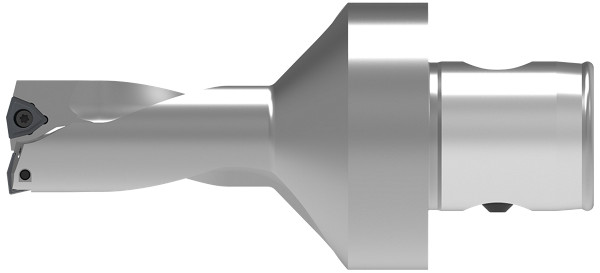

KUB Trigon – Indexable insert drill
Артикул: 1189215095

Article description

Designation:
KUB-T.2D.150.L.03-ABS50
KUB TRIGON — INDEXABLE INSERT DRILL

Description:

left-hand cutting

Scope of supply:

Indexable Insert Drill incl. clamping screws

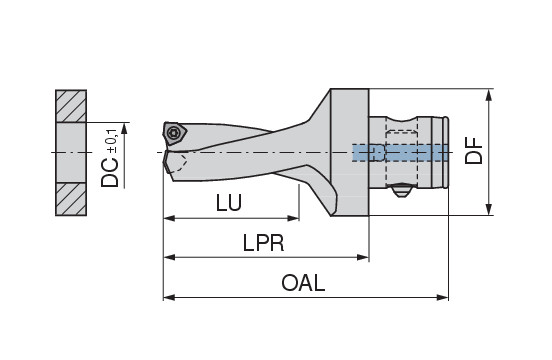

Technical data
Product-Carbon-FootprintB
Cutting diameter / DC15 mm
Mounting spigot diameter​ / DCONMS28 mm
Flange diameter / DF50 mm
Overall length / OAL96 mm
Protruding length / LPR65 mm
Usable length / LU30 mm
InsertWOEX 030204
torque moment0,62 Nm
