| Series | 37M |

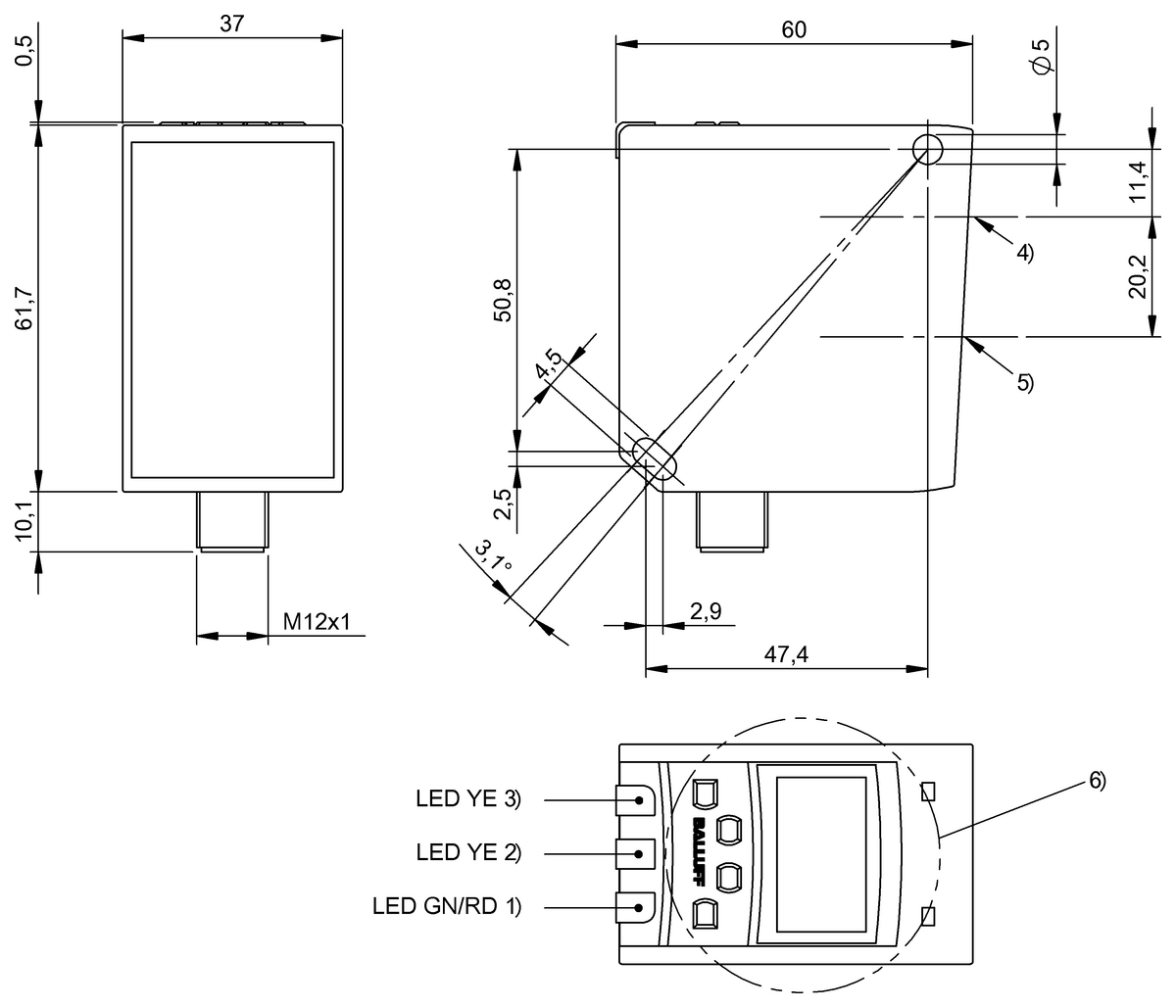

| Dimension | 60 x 37 x 72.3 mm |
| Interface | RS485Analog, voltage/analog, current 0.2…10 V/4…20 mAlinear rising/falling2x PNP/NPN/push-pull NO/NC |
| Principle of operation | Photoelectric distance sensor BOD |
| Principle of optical operation | Light time-of-flight |
| Beam characteristic | Collimated |
| Light type | Laser Red light |
| Light spot size | Ø 15 mm at 10 m |
| Range | 200…20000 mm |
| Accuracy | ±0.035 % FS |
| Repeat accuracy | 0.01 % FS |
| Resolution | ≤ 1.0 mm |
| Connection | Connector, M12x1-Male, 8-pin |
| Housing material | Zinc, Die casting |
| Operating voltage Ub | 19.2…28.8 VDC |
| Approval/Conformity | CEUKCAcULusWEEE |
