Product documentation

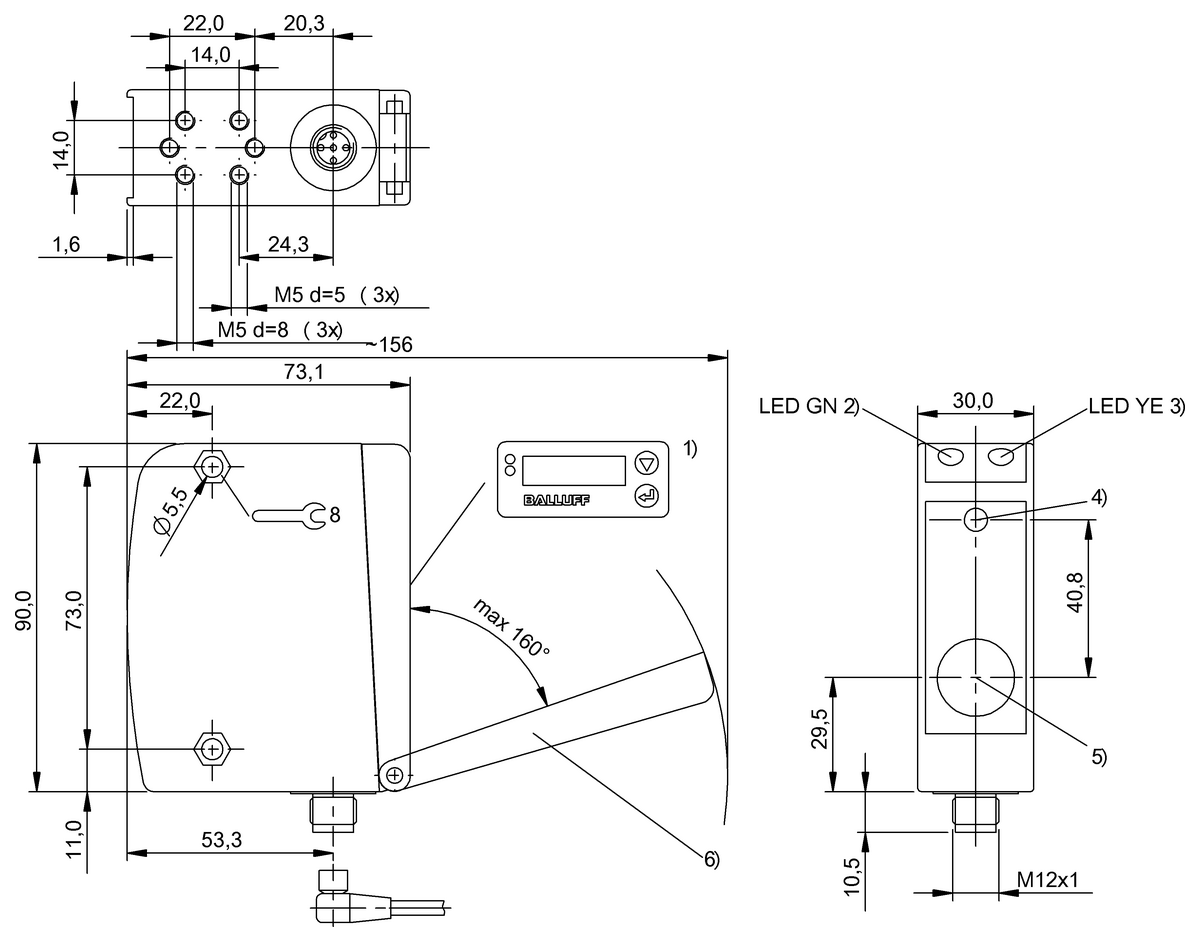

Technical drawing
| Series | 66M |
| Dimension | 30 x 100.5 x 73.2 mm |
| Interface | Analog, current 4…20 mAlinear rising/fallingPNP/NPN NO/NC |
| Principle of operation | Photoelectric distance sensor BOD |
| Principle of optical operation | Triangulation |
| Series | 66M |
| Dimension | 30 x 100.5 x 73.2 mm |
| Interface | Analog, current 4…20 mAlinear rising/fallingPNP/NPN NO/NC |
| Principle of operation | Photoelectric distance sensor BOD |
| Principle of optical operation | Triangulation |
| Beam characteristic | Divergent |
| Light type | Laser Red light |
| Light spot size | 2 x 6 mm at 2 m |
| Range | 150…2000 mm |
| Accuracy | ±1.5 % FS |
| Repeat accuracy | 0.5 % FS |
| Resolution | 1…3 mm |
| Connection | Connector, M12x1-Male, 5-pin |
| Housing material | Zinc, Die casting, Painted |
| Operating voltage Ub | 18…30 VDC |
| Approval/Conformity | CEWEEE |
