BNS058K

Сделать заказ

Product documentation

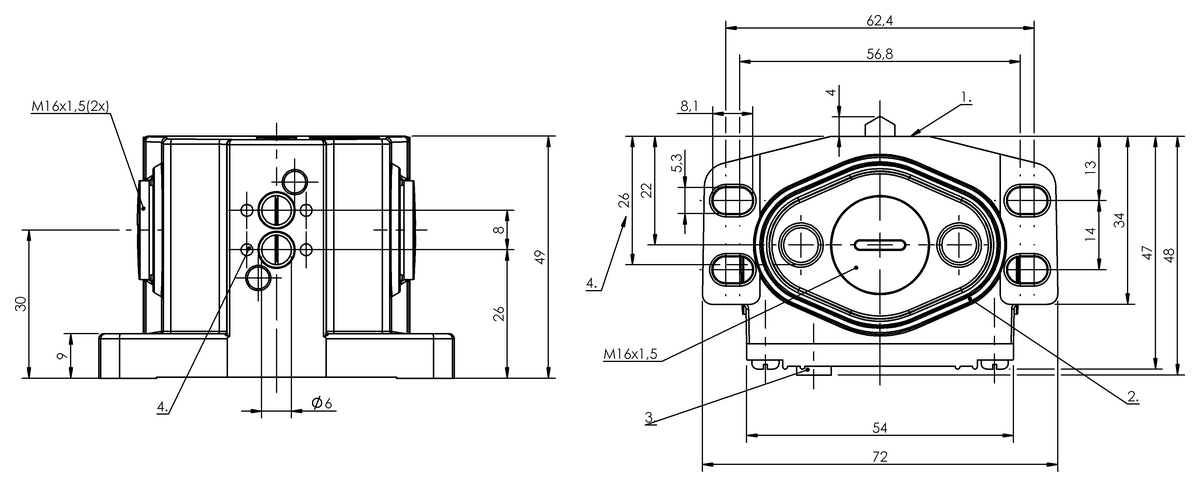

Technical drawing

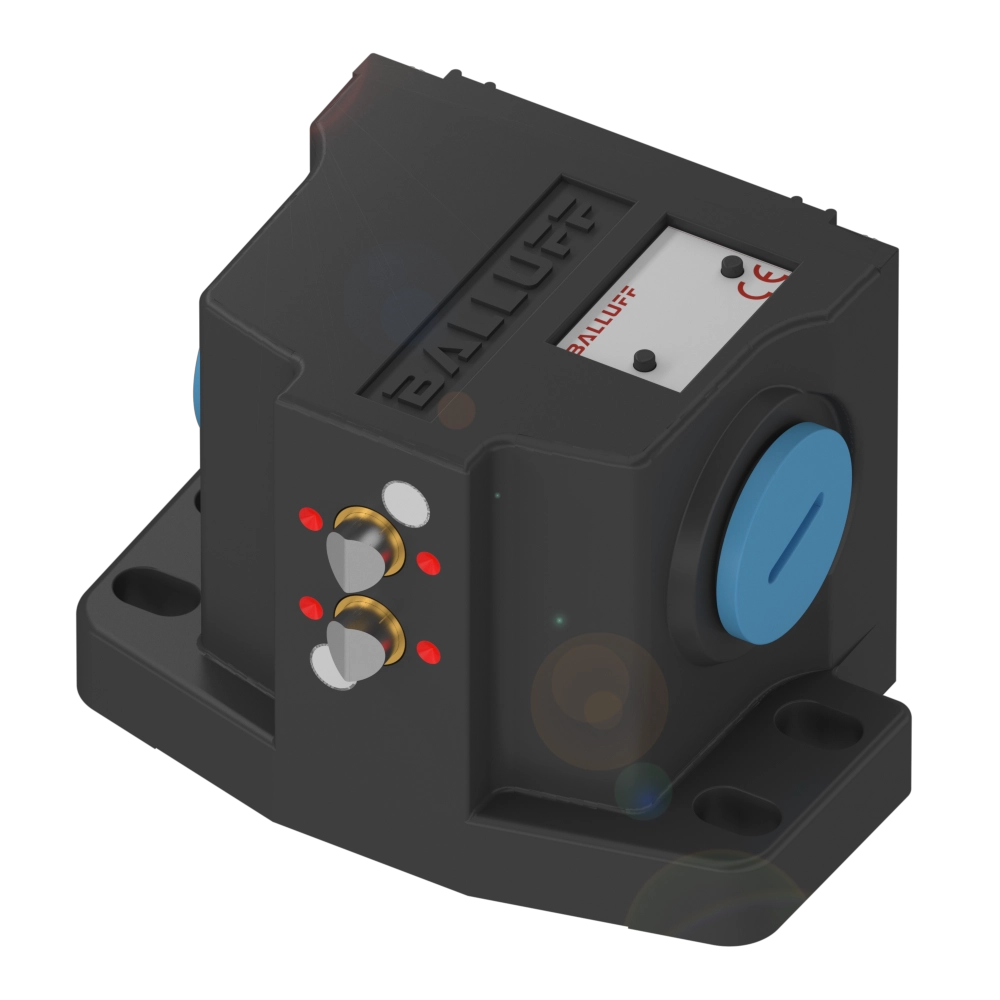

Mechanical multiple position limit switches with positive opening

Housing material Aluminum, Anodized
Number of switching positions 2x Chisel
Version with forced opening
Operating principle 1-2. Switch position: Mechanical
Continuous current 1-2. Switch position: 5 A

Key features

Housing materialAluminum, Anodized
Number of switching positions2x Chisel
Versionwith forced opening
Operating principle1-2. Switch position: Mechanical
Continuous current1-2. Switch position: 5 A
Rated operating voltage Ue1-2. Switch position: 250 VAC
InstallationVertical
Approach directionlongitudinal, parallel to attachment surface
Approach speed1-2. Switch position: 20 m/min
Connection type1-2. Switch position: Solder connection
Ambient temperature-5…85 °C
IP ratingIP67
Approval/ConformityCEUKCACCCWEEE
