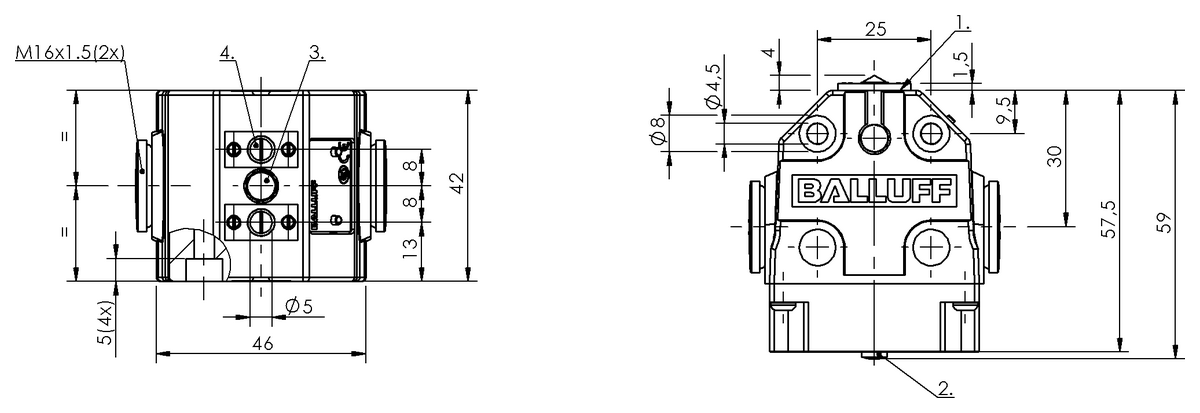

| Dimension | 40 x 42 x 60 mm |
| Housing material | Aluminum, Anodized |
| Number of switching positions | 3x E-chisel |
| Version | Snap contact |
| Operating principle | 1. Switch position: Mechanical2. Switch position: Inductive3. Switch position: Mechanical |
| Continuous current | 1. Switch position: 5 A2. Switch position: 0.13 A3. Switch position: 5 A |
| Rated operating voltage Ue | 1. Switch position: 250 VAC2. Switch position: 24 VDC3. Switch position: 250 VAC |
| Installation | parallel |
| Approach direction | longitudinal, parallel to attachment surface |
| Approach speed | 1. Switch position: 10 m/min3. Switch position: 10 m/min |
| Switch position spacing | 8 mm |
| Connection type | 1-3. Switch position: Screw terminal |
| Ambient temperature | -5…70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAWEEE |
