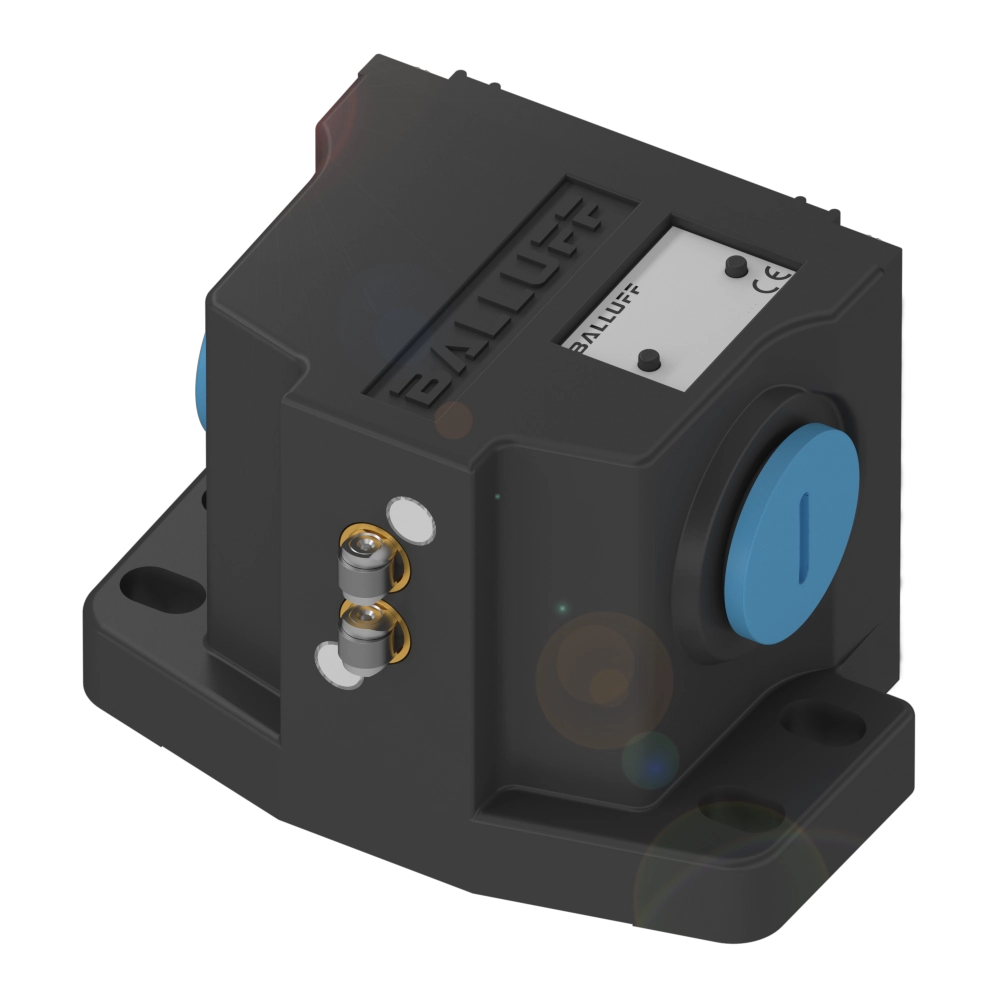

BNS01T1

Сделать заказ

Product documentation

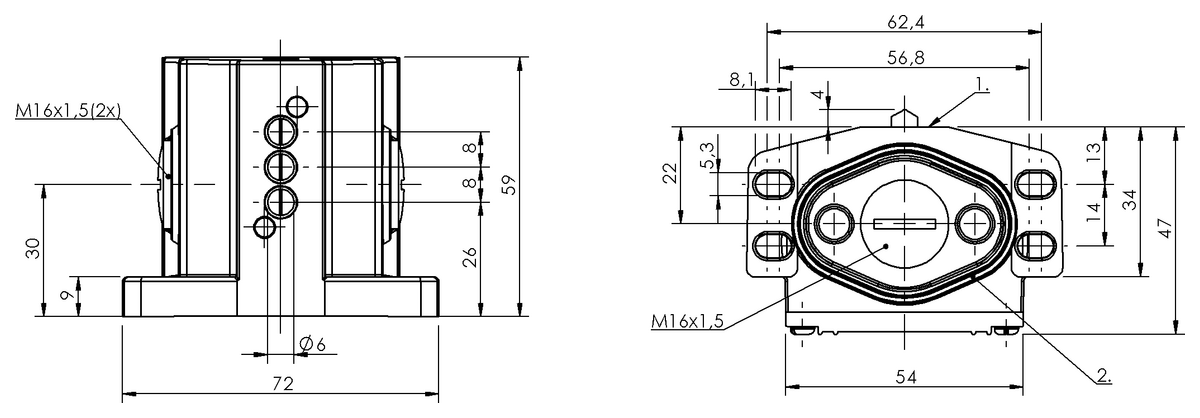

Technical drawing

Mechanical multiple position limit switches

Dimension 72 x 59 x 47 mm
Housing material Aluminum, Anodized
Number of switching positions 3x Chisel
Version Snap contact
Operating principle 1-3. Switch position: Mechanical

Key features

Dimension72 x 59 x 47 mm
Housing materialAluminum, Anodized
Number of switching positions3x Chisel
VersionSnap contact
Operating principle1-3. Switch position: Mechanical
Continuous current1-3. Switch position: 5 A
Rated operating voltage Ue1-3. Switch position: 250 VAC
InstallationVertical
Approach directionlongitudinal, parallel to attachment surface
Approach speed1-3. Switch position: 20 m/min
Switch position spacing8 mm
Connection type1-3. Switch position: Solder connection
Ambient temperature-5…85 °C
IP ratingIP67
Approval/ConformityCEUKCACCCWEEE
