Product documentation

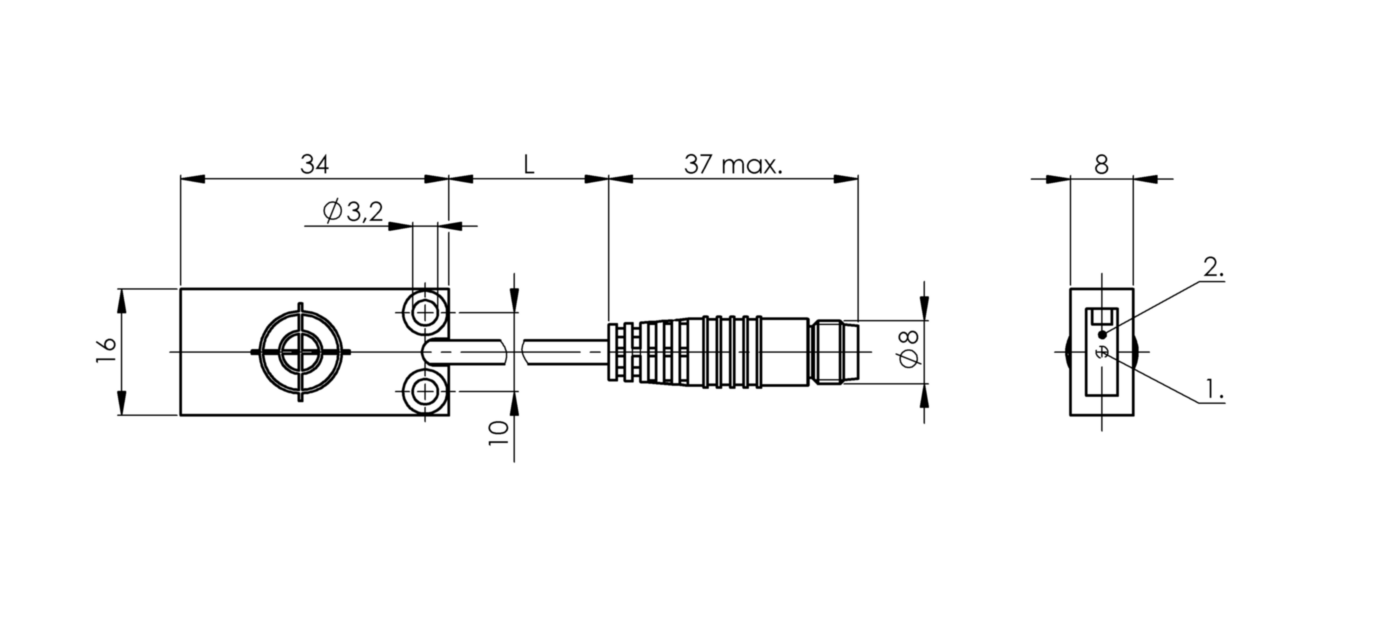

Technical drawing
Cubic version with teachable switching distance
| Dimension | 34 x 16 x 8 mm |
| Series | R08 |
| Installation | for flush mounting |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR |
| Switching output | PNP Normally open (NO) |
Key features
| Dimension | 34 x 16 x 8 mm |
| Series | R08 |
| Installation | for flush mounting |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 100 Hz |
| Range | 1…8 mm |
| Sensitivity | Switching distance adjustable |
| Housing material | PP |
| Material sensing surface | PP |
| Ambient temperature | -30…70 °C |
| Operating voltage Ub | 12…30 VDC |
| Approval/Conformity | CEUKCAcULusWEEE |
| IP rating | IP67 |
