Product documentation

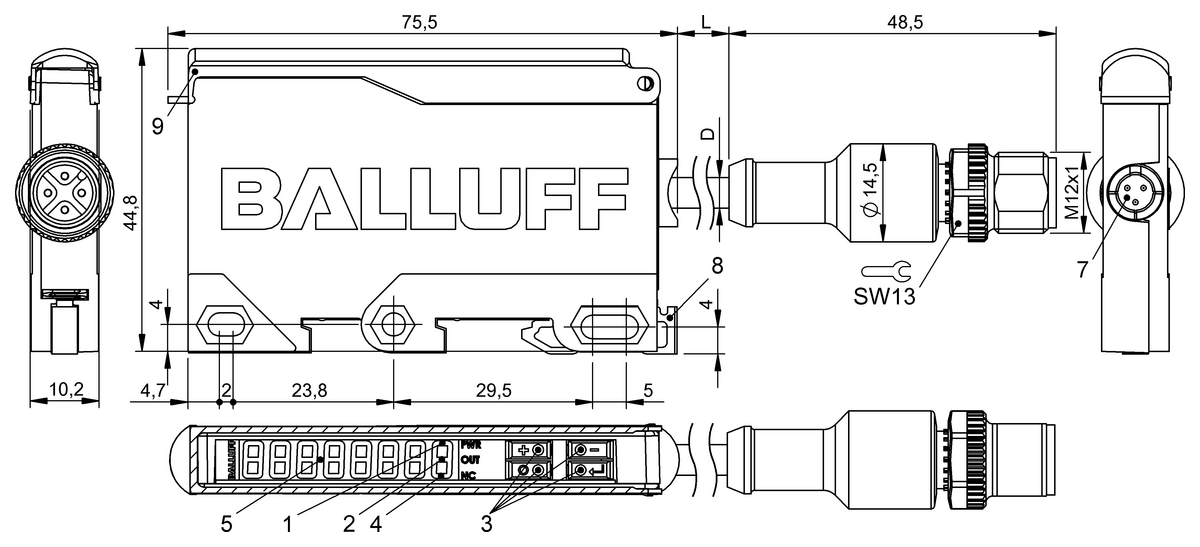

Technical drawing
| Dimension | 10.5 x 45 x 75.5 mm |
| Connection | Cable with connector, M12x1, 0.30 m, PUR |
| Switching output | PNP/NPN NO/NC programmable |
| Switching frequency | 100 Hz |
| Analog output | Analog, voltage/analog, current 0…10 V/4…20 mA |
| Dimension | 10.5 x 45 x 75.5 mm |
| Connection | Cable with connector, M12x1, 0.30 m, PUR |
| Switching output | PNP/NPN NO/NC programmable |
| Switching frequency | 100 Hz |
| Analog output | Analog, voltage/analog, current 0…10 V/4…20 mA |
| Housing material | PBT |
| Ambient temperature | -10…70 °C |
| Operating voltage Ub | 15…30 VDC |
| Approval/Conformity | CEUKCAcULusWEEE |
| IP rating | IP40 |
| Time function | On/off delay time programmable |
