Product documentation

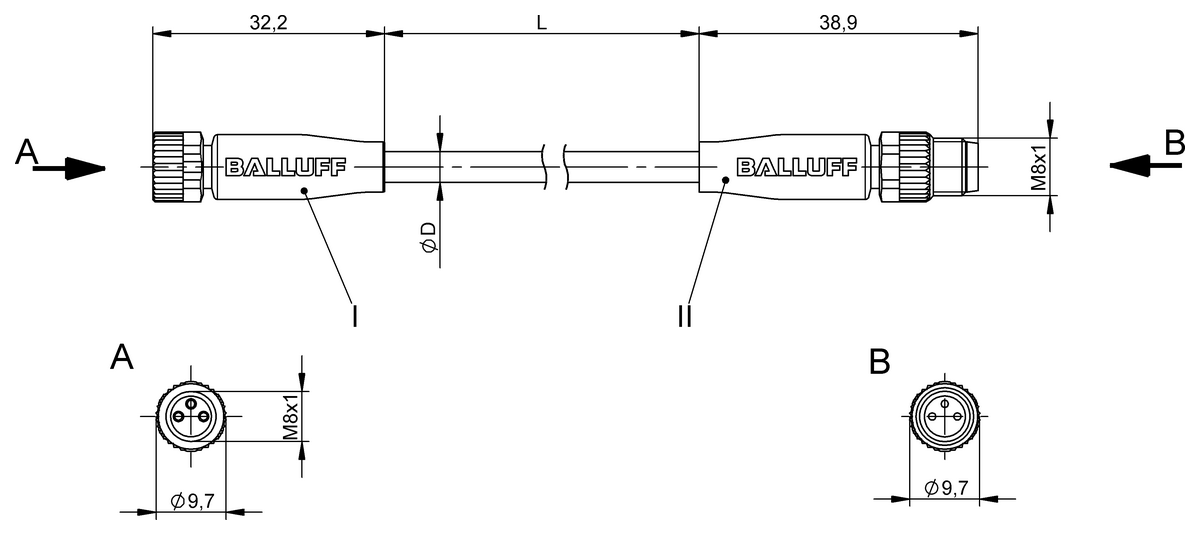

Technical drawing

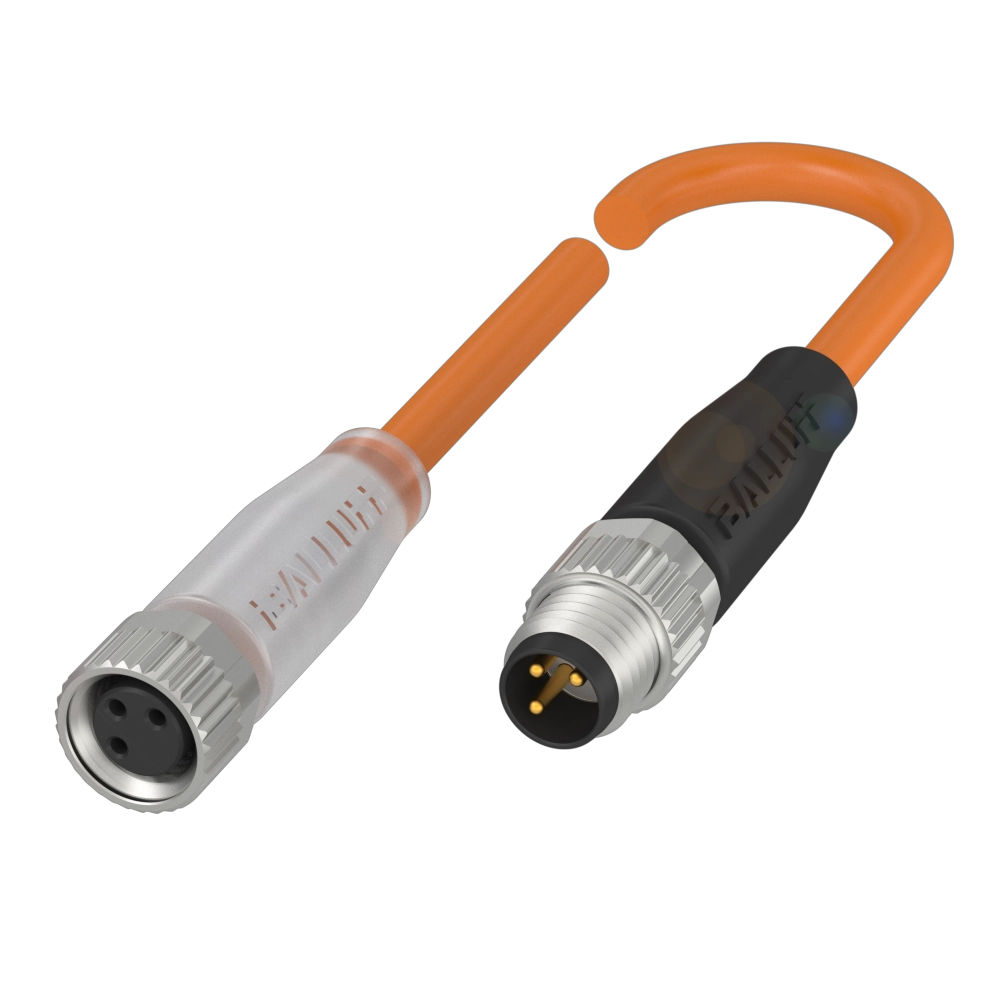

| Connection 1 | M8x1-Female, straight, 3-pin, A-coded |
| Connection 2 | M8x1-Male, straight, 3-pin, A-coded |
| Power indicator | LED green/no |
| Function indicator (Pin 4) | LED yellow |
| Cable | PUR welding spark resistant orange, 0.3 m, Drag chain compatible |
| Connection 1 | M8x1-Female, straight, 3-pin, A-coded |
| Connection 2 | M8x1-Male, straight, 3-pin, A-coded |
| Power indicator | LED green/no |
| Function indicator (Pin 4) | LED yellow |
| Cable | PUR welding spark resistant orange, 0.3 m, Drag chain compatible |
| Number of conductors | 3 |
| Cable temperature, fixed routing | -50…90 °C |
| Cable temperature, flexible routing | -25…90 °C |
| Operating voltage Ub | 30 VDC |
| Rated current (40 °C) | 4.0 A |
| IP rating | IP67, IP69K/IP67, IP69K |
| Approval/Conformity | CEcULusWEEE |
